# Azure PostgreSQL

PostgreSQL databases are open-source relational database management systems emphasizing extensibility and SQL compliance. Microsoft enables developers to create cloud-hosted PostgreSQL databases.

Through this integration, Apono helps you securely manage access to your Azure PostgreSQL instances.

To enable Apono to manage Azure PostgreSQL user access, you must create a user and then configure the integration within the Apono UI.

***

### Prerequisites

<table><thead><tr><th width="254">Item</th><th>Description</th></tr></thead><tbody><tr><td><strong>Apono Connector</strong></td><td>On-prem <a href="../apono-connector-for-azure">connection</a> serving as a bridge between an Azure MySQL database instance and Apono<br><br><strong>Minimum Required Version</strong>: 1.3.0</td></tr><tr><td><strong>PostgreSQL Info</strong></td><td><p>Information for the database instance to be integrated:</p><ul><li>Hostname</li><li>Port Number</li><li>Database Name</li></ul></td></tr></tbody></table>

***

### Create a PostgreSQL user

You must create a user in your PostgreSQL instance for the Apono connector and grant that user permissions to your databases.

{% hint style="danger" %}
You must use the admin account and password to connect to your database.
{% endhint %}

Use the following steps to create a user and grant it permissions:

1. In your preferred client tool, create a new user. Use `apono_connector` for the username. Be sure to set a strong password for the user.\
   You must also grant the `azure_pg_admin` role to the user in the database instance.

```sql
CREATE USER apono_connector WITH ENCRYPTED PASSWORD 'password';
ALTER USER apono_connector WITH CREATEROLE;
GRANT azure_pg_admin TO apono_connector;
```

2. Grant privileges to the `azure_pg_admin` role on all databases except `template0` and `azure_sys`.\
   This allows Apono to perform tasks that are not restricted to a single schema or object within the database, such as creating, altering, and dropping database objects.

{% code overflow="wrap" %}

```sql
DO $$
DECLARE
  database_name text;
BEGIN
  FOR database_name IN (SELECT datname FROM pg_database WHERE datname != 'template0' AND datname != 'azure_sys' AND datname != 'azure_maintenance') LOOP
    EXECUTE 'GRANT ALL PRIVILEGES ON DATABASE ' || quote_ident(database_name) || ' TO azure_pg_admin WITH GRANT OPTION';
  END LOOP;
END; $$
```

{% endcode %}

3. For each database to be managed through Apono, connect to the database and grant `azure_pg_admin` privileges on all objects in the schemas.\
   \
   This allows Apono to perform tasks that are restricted to schemas within the database, such as modifying table structures, creating new sequences, or altering functions.

{% code overflow="wrap" %}

```sql
DO $$
DECLARE
  schema text;
BEGIN
  FOR schema IN (SELECT schema_name FROM information_schema.schemata WHERE schema_name NOT LIKE 'pg_%' AND schema_name != 'information_schema' AND schema_name != 'cron') LOOP
    EXECUTE 'GRANT ALL PRIVILEGES ON SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL SEQUENCES IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL FUNCTIONS IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
  END LOOP;
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON TABLES TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON SEQUENCES TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON FUNCTIONS TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON SCHEMAS TO azure_pg_admin WITH GRANT OPTION';
END; $$
```

{% endcode %}

4. Connect to the `template1` database and grant `azure_pg_admin` privileges on all objects in the schemas.\
   \
   For any new databases created in the future, this allows Apono to perform tasks that are restricted to schemas within the database, such as modifying table structures, creating new sequences, or altering functions.

{% code overflow="wrap" %}

```sql
DO $$
DECLARE
  schema text;
BEGIN
  FOR schema IN (SELECT schema_name FROM information_schema.schemata WHERE schema_name NOT LIKE 'pg_%' AND schema_name != 'information_schema' AND schema_name != 'cron') LOOP
    EXECUTE 'GRANT ALL PRIVILEGES ON SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL SEQUENCES IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
    EXECUTE 'GRANT ALL PRIVILEGES ON ALL FUNCTIONS IN SCHEMA ' || quote_ident(schema) || ' TO azure_pg_admin WITH GRANT OPTION';
  END LOOP;
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON TABLES TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON SEQUENCES TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON FUNCTIONS TO azure_pg_admin WITH GRANT OPTION';
  EXECUTE 'ALTER DEFAULT PRIVILEGES GRANT ALL PRIVILEGES ON SCHEMAS TO azure_pg_admin WITH GRANT OPTION';
END; $$
```

{% endcode %}

5\. Using the credentials from step **1**, [create a secret](https://docs.apono.io/docs/connectors-and-secrets/apono-integration-secret#azure) for the database instance and associate it to the Azure connector.

***

### Integrate Azure PostgreSQL

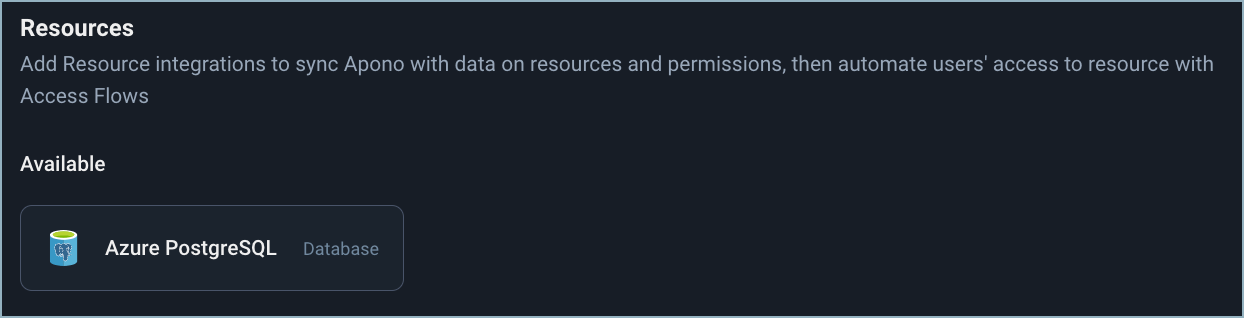

<figure><img src="https://1094436629-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fv6MBfUGvblSdAz31yJXm%2Fuploads%2Fgit-blob-f1aab4aef34ae76a3ba86e8f4a86bcc7550d5090%2FAzure-postgresql-1.png?alt=media" alt="" width="563"><figcaption><p>Azure PostgreSQL</p></figcaption></figure>

{% hint style="success" %}
You can also use the steps below to integrate with Apono using Terraform.

In step **11**, instead of clicking **Confirm**, follow the **Are you integrating with Apono using Terraform?** guidance.
{% endhint %}

Follow these steps to complete the integration:

1. On the [**Catalog**](https://app.apono.io/catalog?search=azure+postgresql) tab, click **Azure PostgreSQL**. The **Connect Integration** page appears.
2. Under **Discovery**, click one or more resource types to sync with Apono.

{% hint style="info" %}
Apono automatically discovers and syncs all the instances in the environment. After syncing, you can manage **Access Flows** to these resources.
{% endhint %}

3. Click **Next**. The **Apono connector** section appears.
4. From the dropdown menu, select the connector that has been granted read access to the secret for the PostgreSQL instance.

{% hint style="success" %}
If the desired connector is not listed, click **+ Add new connector** and follow the instructions for [creating an Azure connector](https://docs.apono.io/docs/azure-environment/apono-connector-for-azure) and [associate the secret](https://docs.apono.io/docs/connectors-and-secrets/apono-integration-secret#azure) with the connector.
{% endhint %}

5. Click **Next**. The **Integration Config** section expands.
6. Define the **Integration Config** settings.

   <table><thead><tr><th width="183">Setting</th><th>Description</th></tr></thead><tbody><tr><td><strong>Integration Name</strong></td><td>Unique, alphanumeric, user-friendly name used to identify this integration when constructing an access flow</td></tr><tr><td><strong>Hostname</strong></td><td>Hostname of the PostgreSQL instance to connect</td></tr><tr><td><strong>Port</strong></td><td>Port value for the database<br><br>By default, Apono sets this value to <em>5432</em>.</td></tr><tr><td><strong>Database Name</strong></td><td>Name of the database to integrate<br><br>By default, Apono sets this value to <em>postgre</em>.</td></tr><tr><td><strong>SSL Mode</strong></td><td><p>(Optional) Mode of Secure Sockets Layer (SSL) encryption used to secure the connection with the SQL database server</p><ul><li><strong>require</strong>: An SSL-encrypted connection must be used.</li><li><strong>allow</strong>: An SSL-encrypted or unencrypted connection is used. If an SSL encrypted connection is unavailable, the unencrypted connection is used.</li><li><strong>disable</strong>: An unencrypted connection is used.</li><li><strong>prefer</strong>: An SSL-encrypted connection is attempted. If the encrypted connection is unavailable, the unencrypted connection is used.</li><li><strong>verify-ca</strong>: An SSL-encrypted connection must be used and a server certification verification against the provided CA certificates must pass.</li><li><strong>verify-full:</strong> An SSL-encrypted connection must be used and a server certification verification against the provided CA certificates must pass. Additionally, the server hostname is checked against the certificate's names.</li></ul></td></tr></tbody></table>
7. Click **Next**. The **Secret Store** section expands.
8. [Associate the secret or credentials](https://docs.apono.io/docs/connectors-and-secrets/apono-integration-secret).
9. Click **Next**. The **Get more with Apono** section expands.
10. Define the **Get more with Apono** settings.

    <table><thead><tr><th width="184">Setting</th><th>Description</th></tr></thead><tbody><tr><td><strong>Credential Rotation</strong></td><td>(Optional) Number of days after which the database credentials must be rotated<br><br>Learn more about the <a href="../../architecture-and-security/credentials-rotation-policy">Credentials Rotation Policy</a>.</td></tr><tr><td><strong>User cleanup after access is revoked (in days)</strong></td><td><p>(Optional) Defines the number of days after access has been revoked that the user should be deleted</p><p><br>Learn more about <a href="../../architecture-and-security/periodic-user-cleanup-and-deletion">Periodic User Cleanup &#x26; Deletion</a>.</p></td></tr><tr><td><strong>Custom Access Details</strong></td><td>(Optional) Instructions explaining how to access this integration's resources<br><br>Upon accessing an integration, a message with these instructions will be displayed to end users in the User Portal. The message may include up to <strong>400 characters</strong>.<br><br>To view the message as it appears to end users, click <strong>Preview</strong>.</td></tr><tr><td><strong>Integration Owner</strong></td><td><p>(Optional) Fallback approver if no <a href="../../access-flows/dynamic-access-management/resource-and-integration-owners">resource owner</a> is found<br><br>Follow these steps to define one or several integration owners:</p><ol><li>From the <strong>Attribute</strong> dropdown menu, select <strong>User</strong> or <strong>Group</strong> under the relevant identity provider (IdP) platform.</li><li>From the <strong>Value</strong> dropdown menu, select one or multiple users or groups.</li></ol><p><br><strong>NOTE</strong>: When <strong>Resource Owner</strong> is defined, an <strong>Integration Owner</strong> must be defined.</p></td></tr><tr><td><strong>Resource Owner</strong></td><td><p>(Optional) Group or role responsible for managing access approvals or rejections for the resource<br><br>Follow these steps to define one or several <a href="../../access-flows/dynamic-access-management/resource-and-integration-owners">resource owners</a>:</p><ol><li>Enter a <strong>Key name</strong>. This value is the name of the tag created in your cloud environment.</li><li>From the <strong>Attribute</strong> dropdown menu, select an attribute under the IdP platform to which the key name is associated.<br><br>Apono will use the value associated with the key (tag) to identify the resource owner. When you update the membership of the group or role in your IdP platform, this change is also reflected in Apono.</li></ol><p><br><strong>NOTE</strong>: When this setting is defined, an <strong>Integration Owner</strong> must also be defined.</p></td></tr></tbody></table>
11. Click **Confirm**.

<details>

<summary>💡Are you integrating with Apono using Terraform?</summary>

If you want to integrate with Apono using Terraform, follow these steps instead of clicking **Confirm**:

1. At the top of the screen, click **View as Code**. A modal appears with the completed Terraform configuration code.
2. Click to copy the code.
3. Make any additional edits.
4. Deploy the code in your Terraform.

Refer to [Integration Config Metadata](https://docs.apono.io/metadata-for-integration-config/integration-metadata/azure-postgresql) for more details about the schema definition.

</details>

Now that you have completed this integration, you can [create access flows](https://docs.apono.io/docs/access-flows/access-flows) that grant permission to your Azure PostgreSQL instances.
