# Apono Query Language

The Apono Query Language (AQL) provides a simple, intuitive syntax for filtering cloud resources, integrations, and permissions.

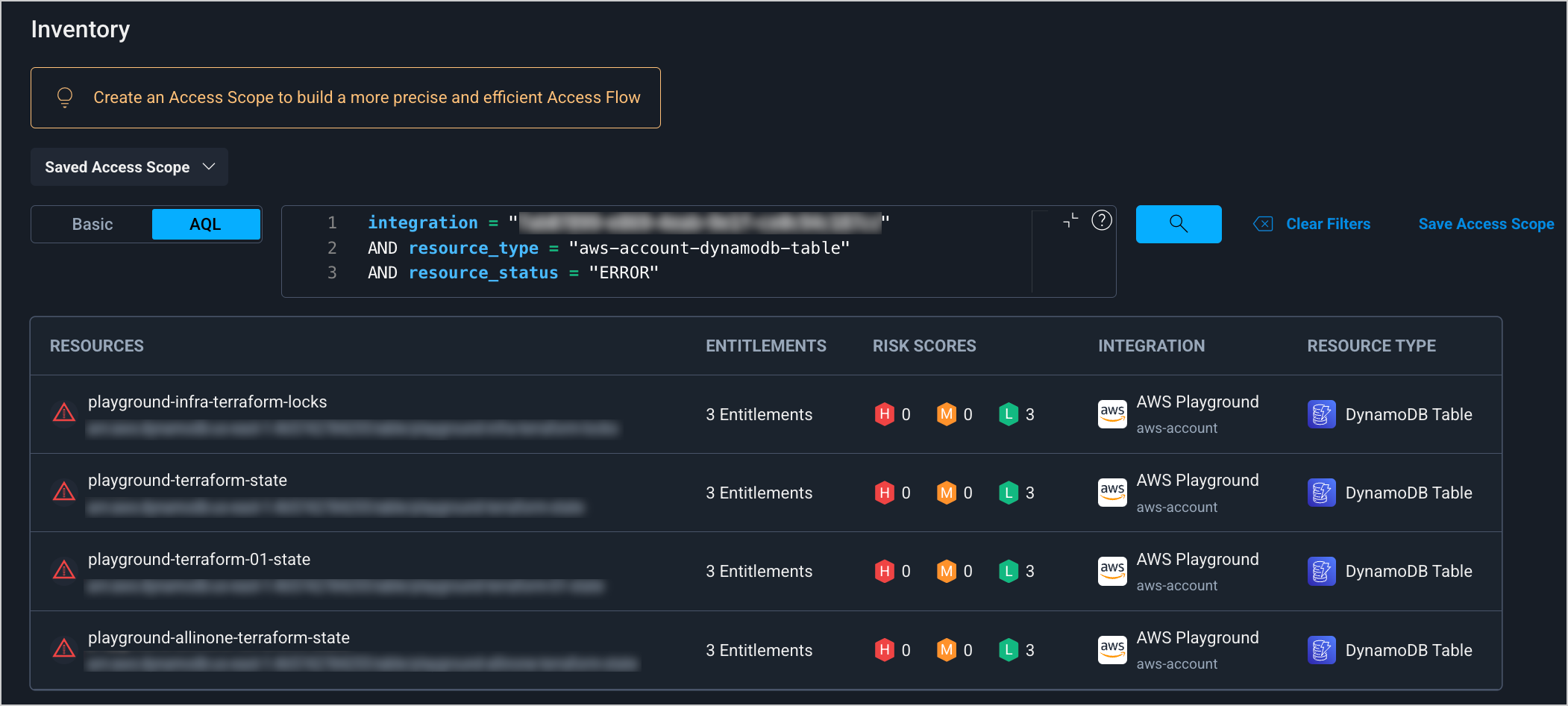

<figure><img src="https://1094436629-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fv6MBfUGvblSdAz31yJXm%2Fuploads%2Fgit-blob-432bc3c470f98365ef40d759b816a8645eb4588d%2Fimage%20(59).png?alt=media" alt=""><figcaption><p>AQL query on the Inventory page</p></figcaption></figure>

This reference documents query construction, available components, and common filtering examples.

{% hint style="success" %}
When you are first starting to build queries, you can quickly learn how to build them by following these steps:

1. On the [**Inventory**](https://app.apono.io/inventory) page, click **Basic**.
2. [Filter the resources](https://docs.apono.io/docs/inventory#filter-resources).
3. Click **AQL**. The AQL syntax will appear in the code box.
   {% endhint %}

***

### **Syntax**

The following is a basic AQL query.

```sql
resource_type = "aws-rds-mysql"
```

AQL uses a simple **field-operator-value** pattern.

```sql
field operator "value"
```

<table><thead><tr><th width="220">Component</th><th>Description</th></tr></thead><tbody><tr><td><a href="#field"><strong>field</strong></a></td><td>Attribute or tag to query</td></tr><tr><td><a href="#operator"><strong>operator</strong></a></td><td>Comparative logic</td></tr><tr><td><strong>value</strong></td><td>Expected value for the field</td></tr></tbody></table>

#### field

The `field` component specifies the attribute of your cloud resources to query.

{% tabs %}
{% tab title="Resource" %}

<table><thead><tr><th width="195">Field</th><th width="188">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>resource_type</strong></td><td>Resource type</td><td><code>resource_type = "aws-rds-mysql"</code></td></tr><tr><td><strong>resource_name</strong></td><td>Resource name</td><td><code>resource_name contains "prod"</code></td></tr><tr><td><strong>resource_path</strong></td><td>Resource Path</td><td><code>resource_path contains "us-east-1"</code></td></tr><tr><td><strong>resource</strong></td><td>Resource identifier</td><td><code>resource = "res_12345"</code></td></tr><tr><td><strong>resource_status</strong></td><td>Current status</td><td><code>resource_status = "active"</code></td></tr><tr><td><strong>resource_risk_level</strong></td><td>Associated risk level</td><td><code>resource_risk_level = "high"</code></td></tr></tbody></table>
{% endtab %}

{% tab title="Permission" %}

<table><thead><tr><th width="211">Field</th><th width="188">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>permission_name</strong></td><td>Permission name</td><td><code>permission_name = "ReadOnly"</code></td></tr><tr><td><strong>permission</strong></td><td>Permission identifier</td><td><code>permission = "perm_12345"</code></td></tr><tr><td><strong>permission_risk_level</strong></td><td>Permission risk level</td><td><code>permission_risk_level = "critical"</code></td></tr></tbody></table>
{% endtab %}

{% tab title="Integration" %}

<table><thead><tr><th width="193">Field</th><th width="188">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>integration_name</strong></td><td>Integration name</td><td><code>integration_name = "AWS-Prod"</code></td></tr><tr><td><strong>integration</strong></td><td>Integration identifier</td><td><code>integration = "int_12345"</code></td></tr></tbody></table>
{% endtab %}

{% tab title="Metadata" %}

<table><thead><tr><th width="245">Field</th><th width="176">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>resource_tag["key"]</strong></td><td>Resource tags</td><td><code>resource_tag["environment"] = "prod"</code></td></tr><tr><td><strong>resource_context["key"]</strong></td><td>Resource context</td><td><code>resource_context["region"] = "us-east-1"</code></td></tr><tr><td><strong>permission_tag["key"]</strong></td><td>Permission tags</td><td><code>permission_tag["type"] = "temporary"</code></td></tr><tr><td><strong>permission_context["key"]</strong></td><td>Permission context</td><td><code>permission_context["access"] = "write"</code></td></tr></tbody></table>
{% endtab %}
{% endtabs %}

#### operator

The `operator` component defines how to evaluate the `field` against the specified `value`.

{% tabs %}
{% tab title="Comparison" %}
Basic operators that test for equality and inequality between values

<table><thead><tr><th width="151">Logic</th><th width="253">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>=</strong></td><td>Checks if values are the same</td><td><code>resource_type = "aws-account-dynamodb-table"</code></td></tr><tr><td><strong>!=</strong></td><td>Checks if values are different</td><td><code>integration != "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"</code></td></tr></tbody></table>
{% endtab %}

{% tab title="String Matching" %}
Operators that perform text-based comparisons ranging from exact matches to pattern matching

<table><thead><tr><th width="151">Logic</th><th width="253">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>contains</strong></td><td>Checks if a value contains another value as a substring or pattern</td><td><code>(resource_tag["aws:cloudformation:stack-name"] contains "apono-cloudtrail")</code></td></tr><tr><td><strong>not_contains</strong></td><td>Checks if a value does NOT contain another value as a substring or pattern</td><td><code>permission_name not_contains "admin"</code></td></tr><tr><td><strong>starts_with</strong></td><td>Checks if a value begins with a specific value or pattern</td><td><code>resource_name starts_with "aws"</code></td></tr><tr><td><strong>ends_with</strong></td><td>Checks if a value ends with a specific value or pattern</td><td><code>(resource_tag["env"] ends_with "dev")</code></td></tr></tbody></table>
{% endtab %}

{% tab title="Lists" %}
Operators that check if values exist within defined sets of options

<table><thead><tr><th width="152">Logic</th><th width="252">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>in</strong></td><td>Checks if the value is one of a list</td><td><code>resource_type in ("aws-account-dynamodb-table", "aws-account-s3", "aws-account-sns-topic")</code></td></tr><tr><td><strong>not_in</strong></td><td>Checks if the value is NOT one of a list</td><td><code>(resource_tag["aws:cloudformation:stack-name"] not_in ("apono-cloudtrail", "apono-doxy-dev"))</code></td></tr></tbody></table>
{% endtab %}

{% tab title="Logic" %}
Operators that combine multiple conditions to create complex queries

<table><thead><tr><th width="151">Logic</th><th width="252">Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>and</strong></td><td>Checks if both conditions are true</td><td><code>resource_type = "aws-account-s3" AND permission_name = "admin"</code></td></tr><tr><td><strong>or</strong></td><td>Checks if either condition is true</td><td><code>resource_type = "aws-account-s3" OR resource_name contains "playground"</code></td></tr><tr><td><strong>not</strong></td><td>Negates a condition</td><td><code>integration = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" and not resource_type = "aws-account-sns-topic"</code></td></tr></tbody></table>
{% endtab %}
{% endtabs %}

***

### Common Queries

The following AQL queries demonstrate how to efficiently locate, audit, and manage cloud resources and permissions. They cover common use cases such as identifying high-risk assets, tracking access levels, and enforcing security policies.

Use these queries as a foundation and customize them to fit your specific environment and compliance requirements.

#### Resource Queries

Queries focused on locating and filtering cloud infrastructure resources

```sql
# Find production databases
resource_type = "aws-rds-mysql" and resource_name contains "prod"

# Find high-risk resources in specific region
resource_risk_level = "high" and resource_context["region"] = "us-east-1"

# Find resources by team ownership
resource_tag["team"] = "platform" and resource_tag["environment"] = "prod"
```

#### Permission Queries

Queries that manage and audit access control settings

{% code overflow="wrap" %}

```sql
# Find critical write permissions
permission_risk_level = "critical" and permission_context["access"] = "write"

# Find temporary access permissions
permission_tag["type"] = "temporary" and permission_status = "active"

# Find elevated permissions
permission_risk_level in ("high","critical") and not permission_name contains "readonly"
```

{% endcode %}

#### Combined Queries

Advanced patterns that merge resource and permission conditions for precise access control

```sql
# Find high-risk prod resources with write permissions
resource_name contains "prod"
and resource_risk_level = "high"
and permission_context["access"] = "write"

# Find temporary access to critical resources
resource_risk_level = "critical"
and permission_tag["type"] = "temporary"
and permission_status = "active"
```

***

### Best Practices

Follow these best practices to write AQL queries that are clear, efficient, and easy to modify. These guidelines improve readability, execution speed, and adaptability.

#### Start with a specific condition

AQL processes conditions from left to right. Starting with a specific filter improves efficiency.

```sql
# Effective
resource_type = "aws-rds-mysql" and resource_name contains "prod"

# Less Efficient
resource_name contains "prod" and resource_type = "aws-rds-mysql"
```

#### Use lists instead of multiple OR conditions

When checking multiple values, `in (...)` is more concise and performs better than chaining multiple `or` conditions.

{% code overflow="wrap" %}

```sql
# Effective
resource_type in ("aws-rds-mysql", "aws-account-s3", "aws-ec2-ssh")

# Less efficient
resource_type = "aws-rds-mysql" or resource_type = "aws-account-s3" or resource_type = "aws-ec2-ssh"
```

{% endcode %}

#### Use parentheses to avoid ambiguity

Without parentheses, complex conditions can be misinterpreted and return unexpected results. Grouping conditions explicitly ensures the query evaluates as intended.

```sql
(resource_type = "aws-rds-mysql" and resource_name contains "prod")
or (resource_type = "aws-account-s3" and resource_name contains "backup")
```
