Installing the Apono HTTP Proxy
This proxy is used by Elasticsearch, Web App and more.
Step By Step to installing the HTTP proxy
Deploy with Kubernetes
- Set the following env vars:
K8S_NAMESPACE=
KMS_KEY_ID=
KMS_KEY_ID

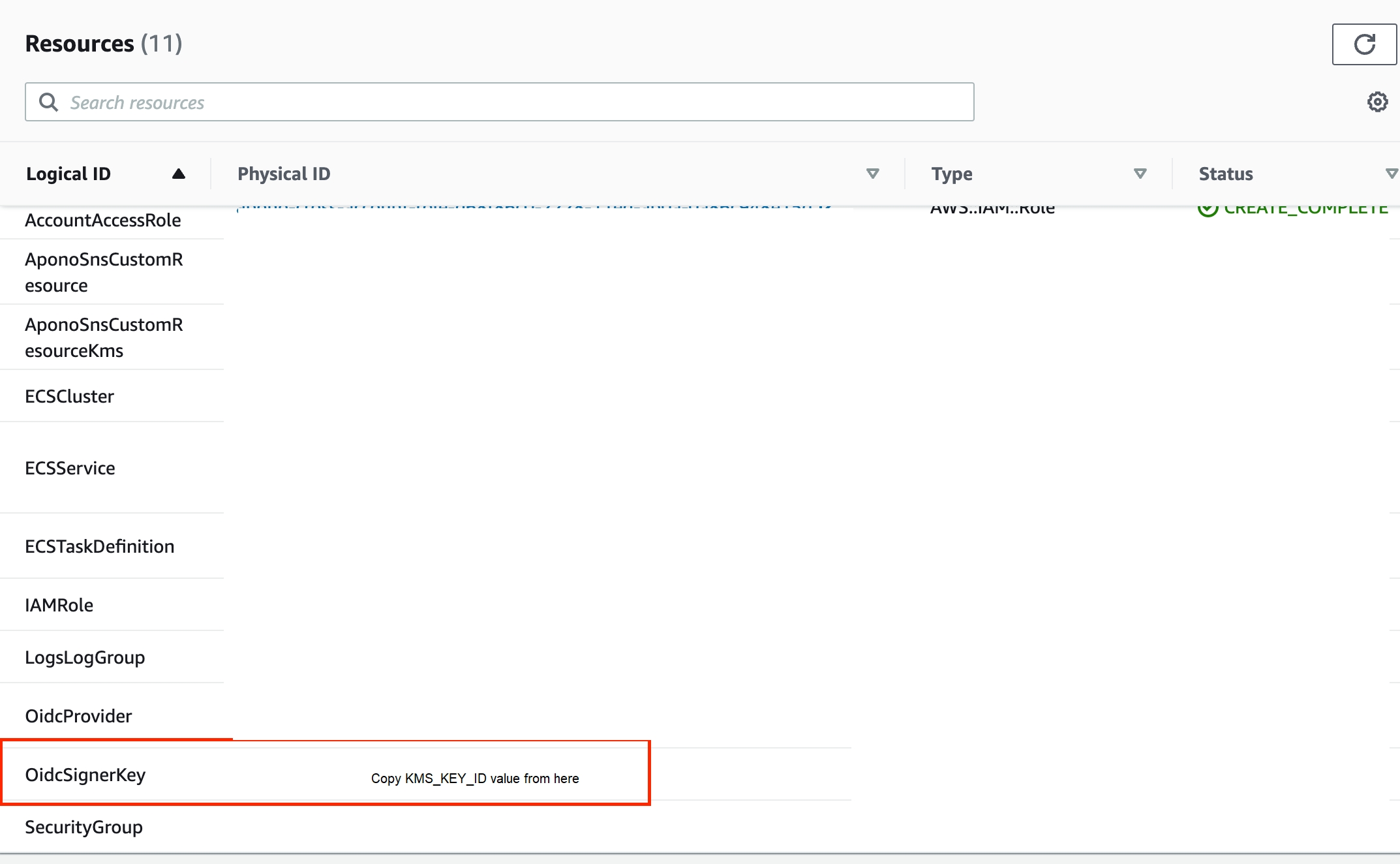

value should be the OidcSignerKey
created by Apono-Connector CloudFormation stack:

- Install envoy proxy with helm:
helm install envoy-proxy https://apono-io.github.io/apono-helm-charts/envoy-proxy/envoy-1.0.4.tgz \
--namespace $K8S_NAMESPACE \
--set-string jwks=`aws kms get-public-key --key-id $KMS_KEY_ID --output text --query PublicKey | awk '{print "-----BEGIN PUBLIC KEY-----\n"$1"\n-----END PUBLIC KEY-----"}' | docker run -i danedmunds/pem-to-jwk:latest | awk '{print "{\"keys\":["$1"]}"}' | openssl base64 -A` \
--set-string tls=true \ # if destination is https
--set-string accessLogs=true \ # if you want access logs to be written
--create-namespace
